West End Fire and Rescue

*2 UNITS*

Year/Make/Model: 2014 Pierce

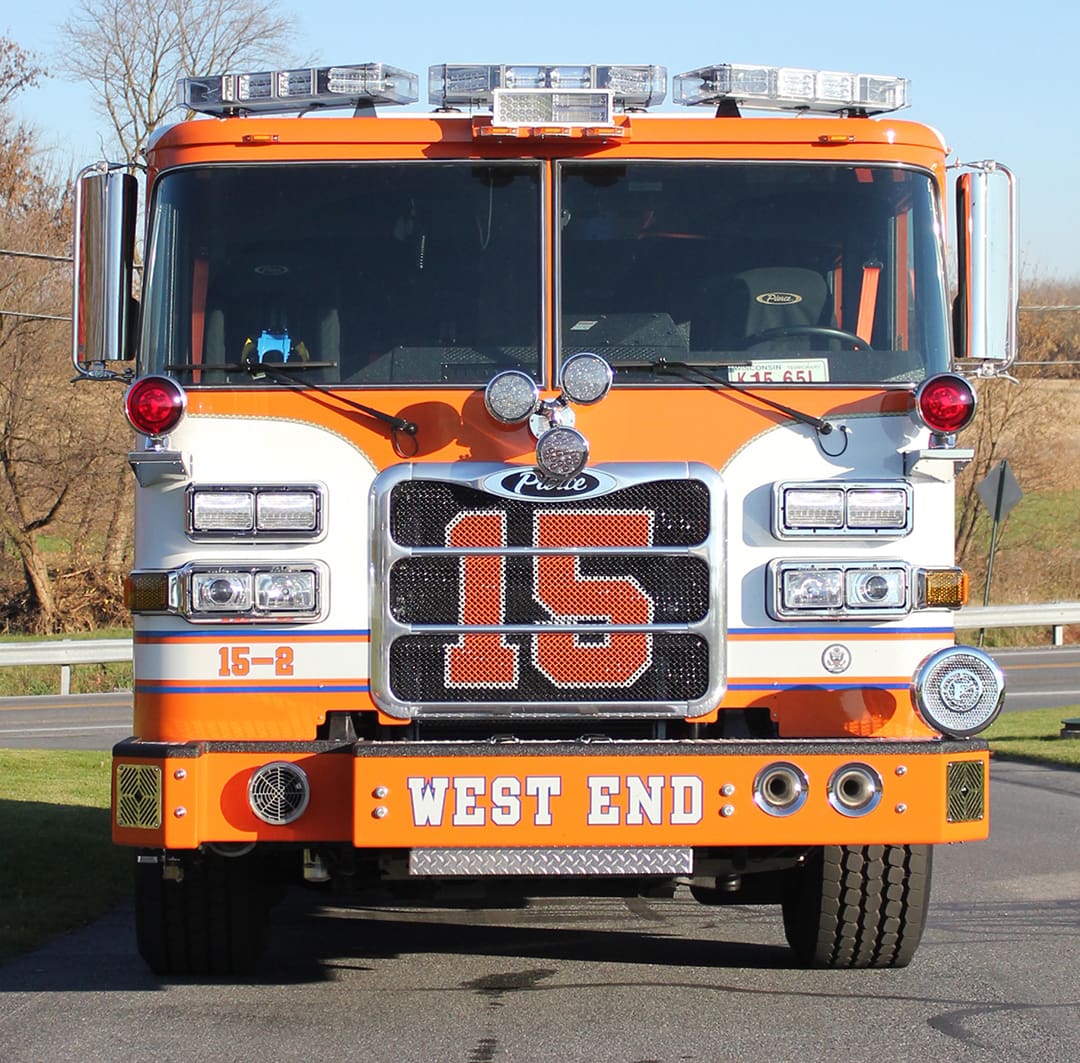

Type of truck: (2) identical 2014 Pierce Arrow XT Pumpers

Designation: ENGINE 15-1 & 15-2

Engine: Detroit Diesel DD13 450HP engine

Transmission: Allison 4000EVS



Pump: Hale, QMAX-150, 1500 GPM, Single Stage

Water tank size: 750-gallons

Foam system:  external

Foam cell:  30-gallon Class A

Generator:  n/a



Wheelbase: 188.50”

Overall Height: 113.00” (9’ 5.00”)

Overall Length: 366.75” (30’ 6.75”)

Seating Capacity: 6



Additional details:

• New York Style Hose Bed
• 19-inch extended bumper
• Side Roll and Frontal Impact Protection
• TAK-4 Independent Front Suspension
• 3.00″ Deluge outlet w/TFT Extend-a-Gun XG18
• 6.00” front inlet
• Two (2) lowered crosslays
• Four (4) rear discharges
• Recessed front intake
• SCBA brackets
• LED Roto Ray
• Dual LED Mars lights
• Whelen LED warning light package
• Whelen Pioneer LED scene lights
• Line-X cab interior
