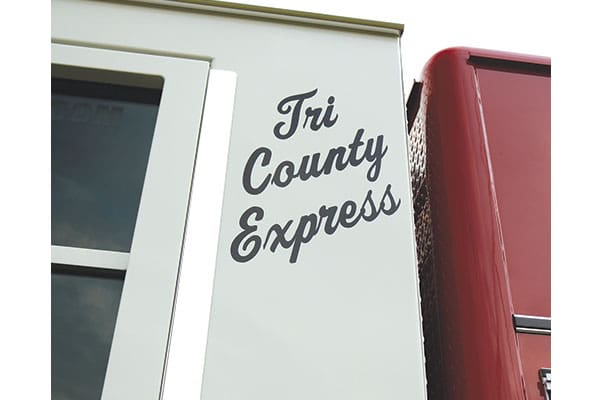

Graphics by GLICK

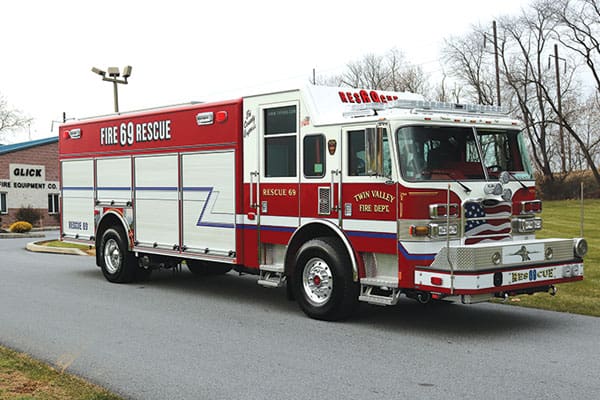

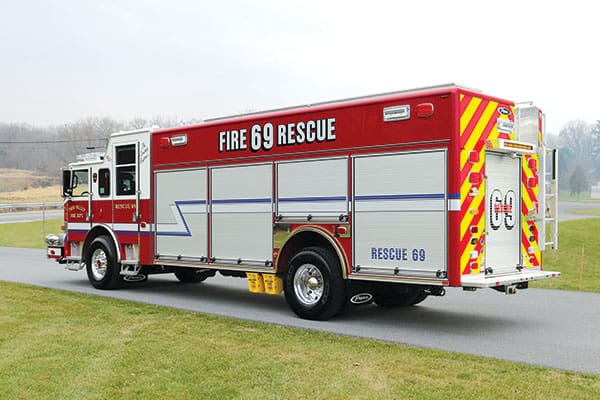

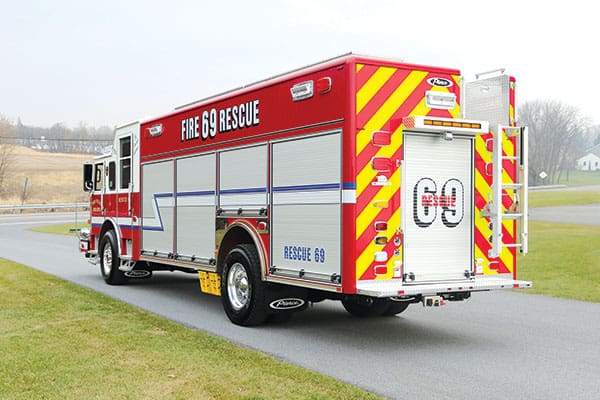

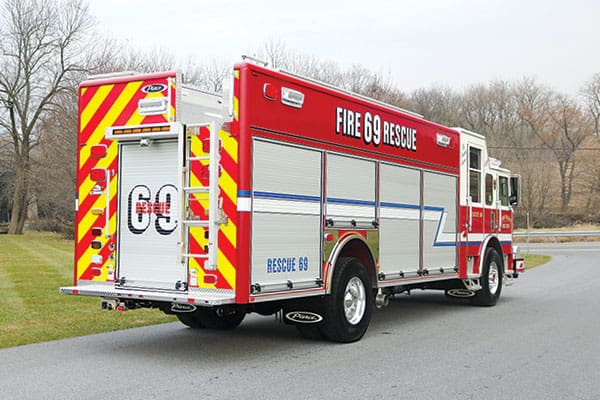

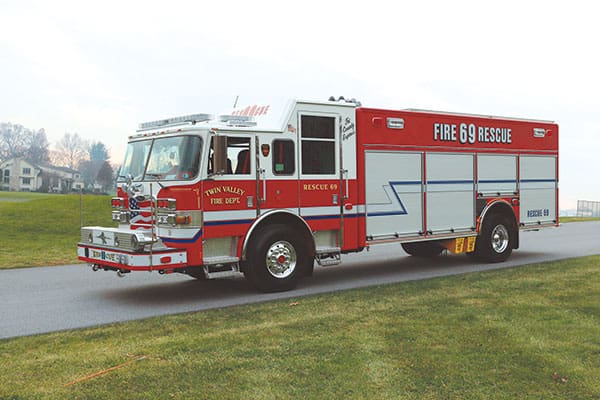

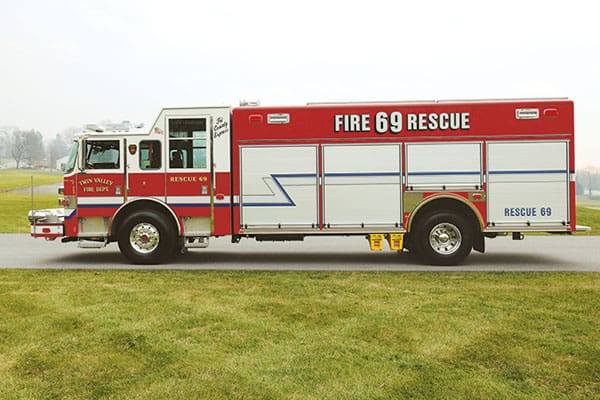

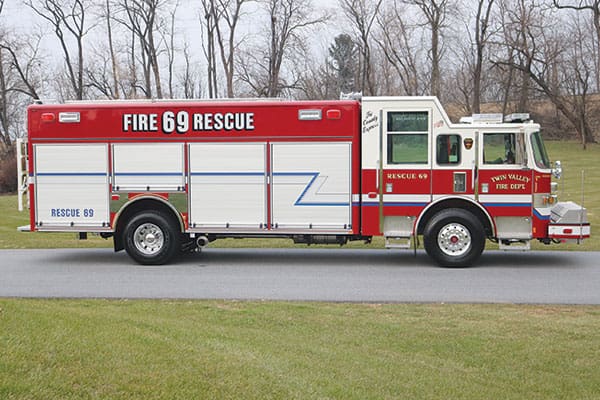

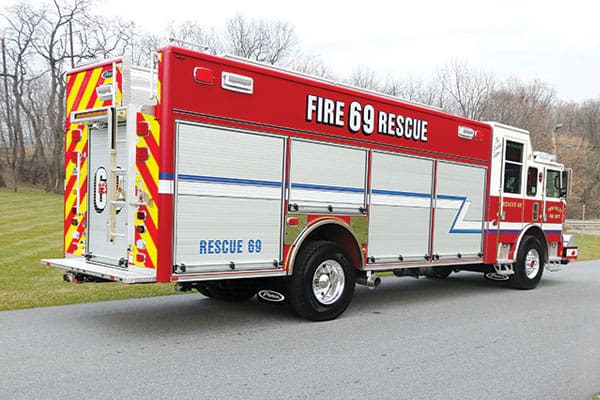

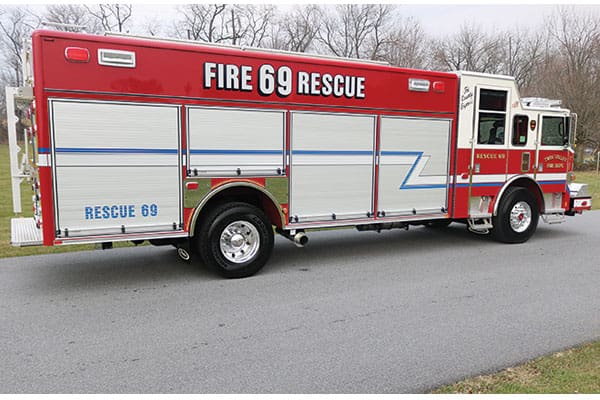

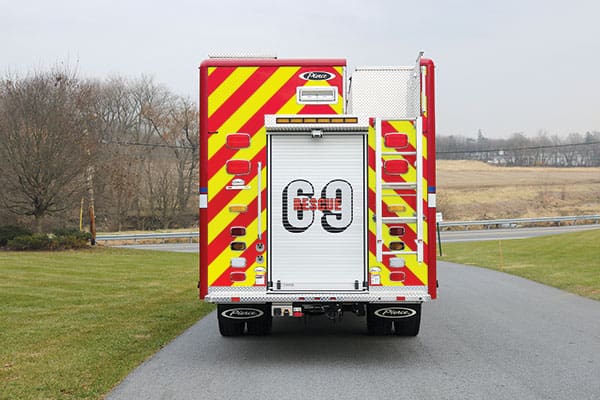

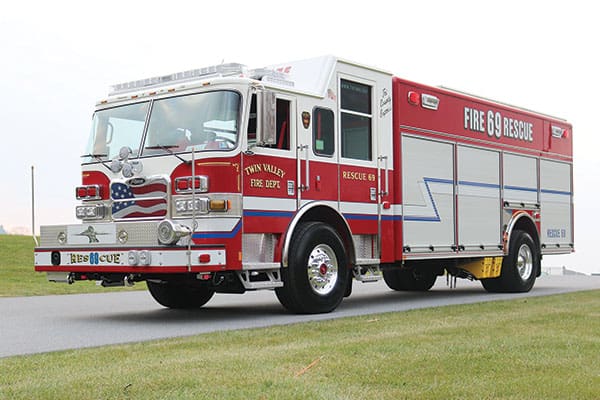

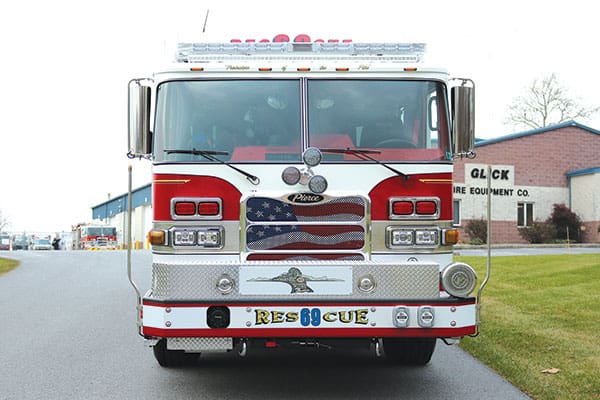

Year/Make/Model: 2019 Pierce® Arrow XT™
Type of truck: Heavy Duty Non-Walk-In Rescue
Designation: Rescue 69
Engine: Cummins L9 450hp Engine
Transmission: Allison 3000 EVS
Overall Height: 10’ 10”
Overall Length: 36′ 2.25″
Wheelbase: 229.00″
Seating Capacity: 6 Seats with 20” raised roof
Additional details:

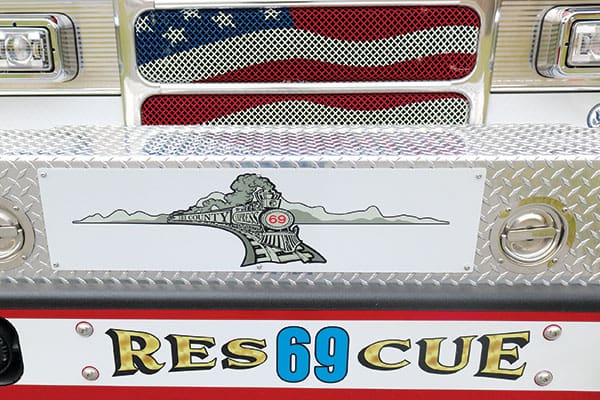

- 26” Under Slung Extended Front Bumper with recessed Holmatro Core Fittings
- Front Independent Suspension
- Side Roll and Frontal Impact Protection
- Air Conditioned
- Warn® 9,000lb Portable Winch
- Four (4) Hitch Receivers
- Onan 15kW Hydraulic Generator
- (2) 200′ Electric Cord Reels
- Front Visor HiViz LED Light Model FT-B-72-*-*, 72.69″ long, 21,067 effective lumens
- Side Cab HiViz LED Scene Lighting, Model FT-MB2-18-FT, 20.50″
- 5- Whelen® Model P*H2*, 2 volt DC LED lights combination of flood and spot
- (1) Will-Burt® Powerlite Model NS4.5-900 WHL, light tower, six (6) Whelen® Model PCP2AC, 150 watt, 120 volt AC combination spot/flood LED light heads
- (4) 6,000psi Cascade System
- SpaceSaver Model 100A Fill Enclosure
- (1) 200′ Low Pressure Air Line
- Holmatro Rescue System
- Shelving, roll-out trays, and custom tool mounting By Glick Fire Equipment

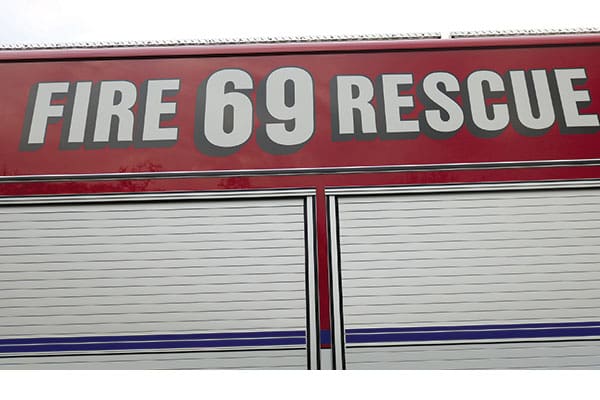

- Pierce® Custom Lettering and Striping
