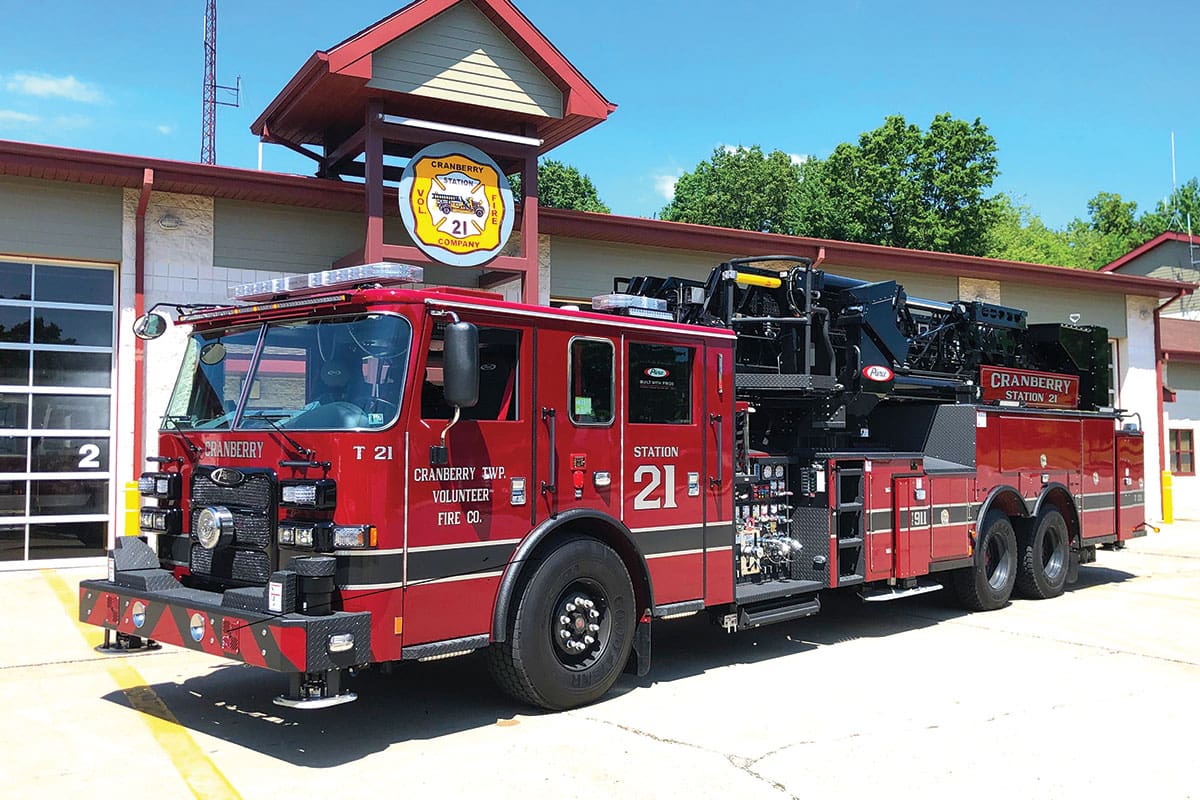

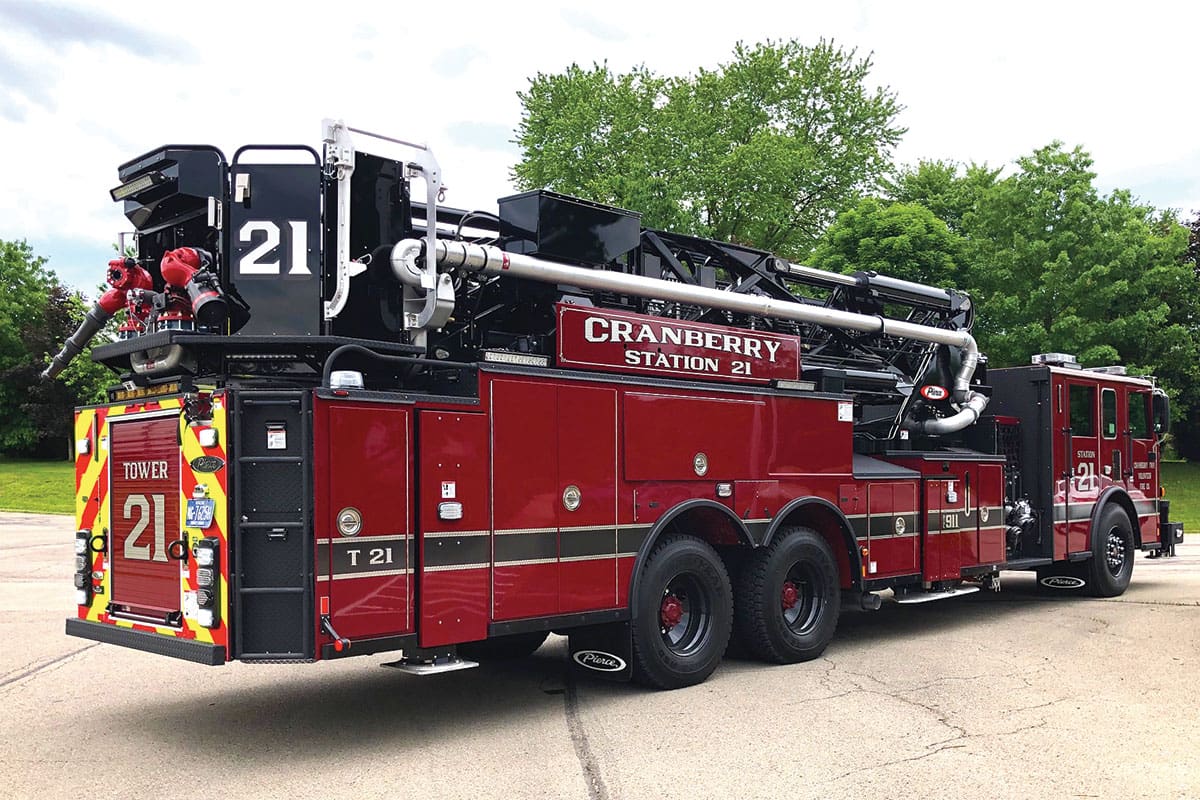

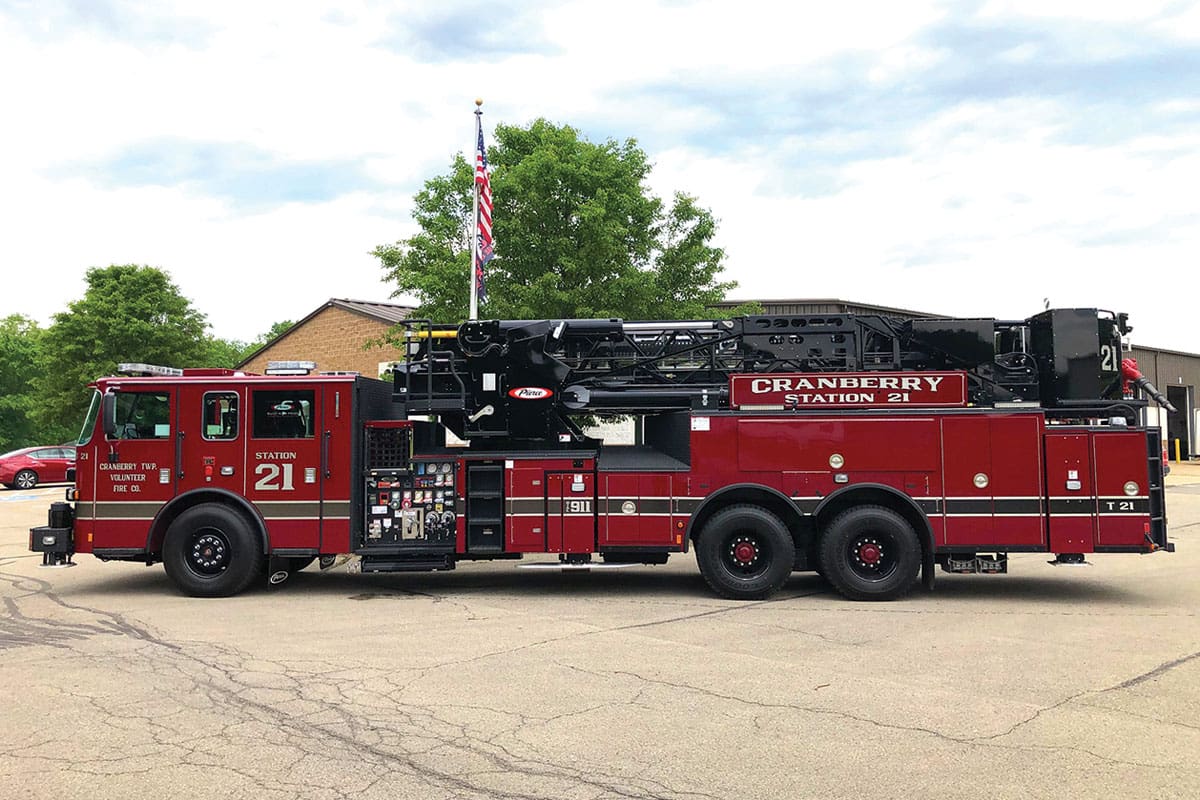

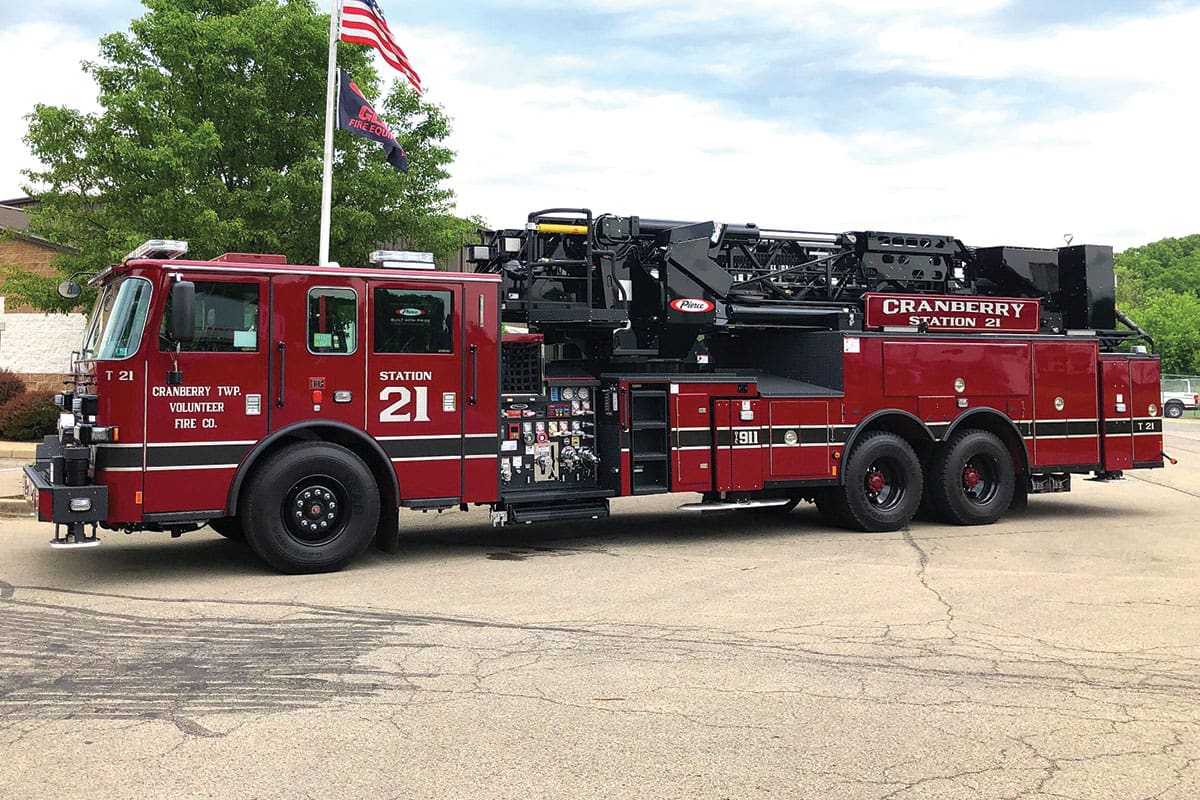

Year/Make/Model: 2020 Pierce® Arrow XT™
Type of truck: 100’ Mid-Mount Aerial Tower Quint
Designation: Tower 21
Engine: Cummins® X12 500 hp Engine
Transmission: Allison® 4000EVS
Water tank size: 300-gallon water tank

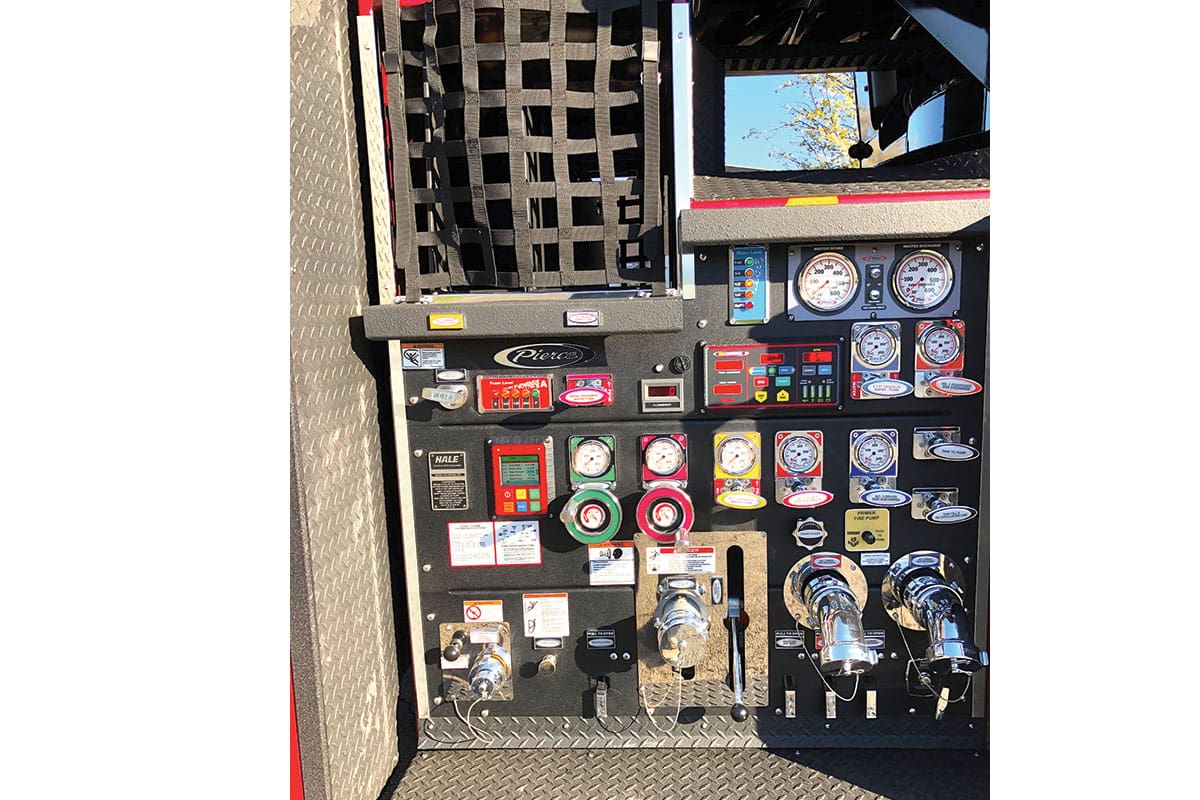

Pump: Hale DSD 1,500 GPM, Single Stage
Foam cell: 20-gallon Class A
Foam system: Husky™ 12 Single Agent,
Overall Height: 132.00” (11’ 0”)
Overall Length: 505.00” (42’ 11”)
Wheelbase: 271.00″
Seating Capacity: 6
Additional details:
- 15″ Extended Bumper
- Side Roll and Frontal Impact Protection
- (2) 2.50″ Outlet, Left Side
- (1) 2.50″ Outlet, Right Side
- 1.50″ Tank fill outlet
- Stabilizer Placement Cameras on each side w/Command Zone Color Display
- LED Rung lighting
- LED Turntable lighting

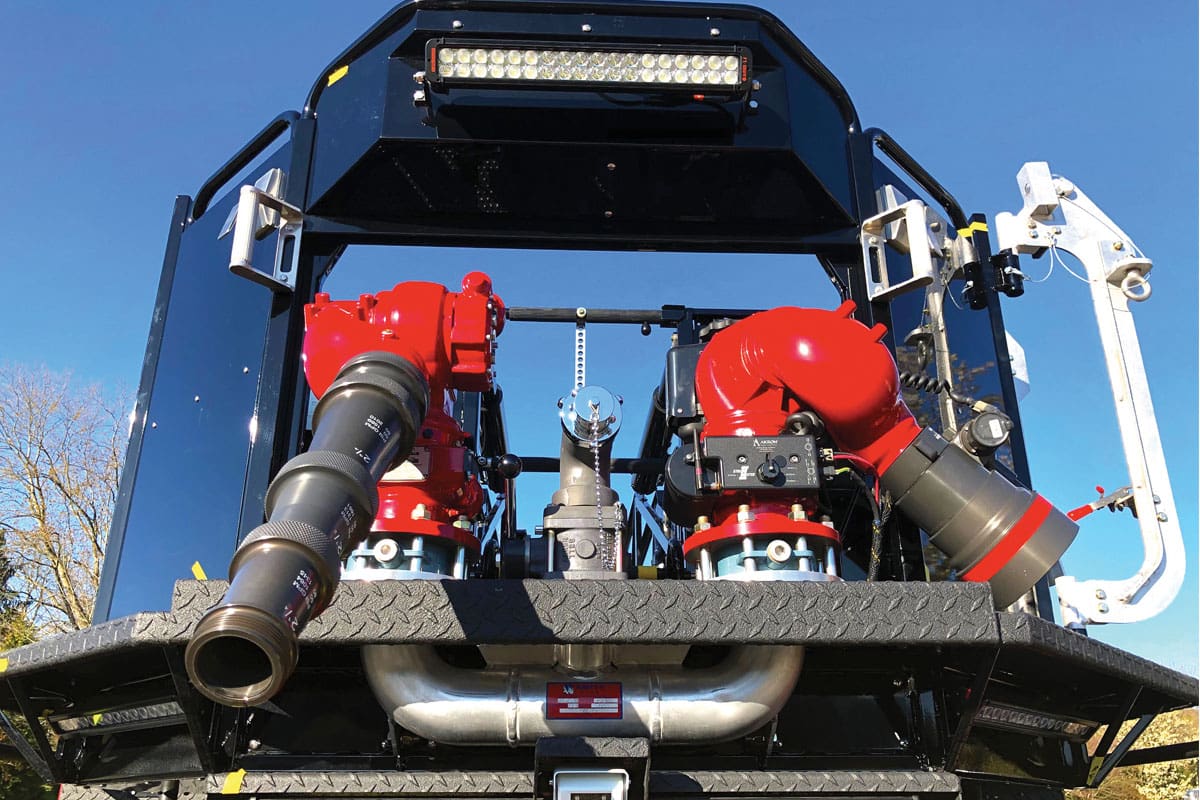

- (1) Preconnect at platform with 2 Akron StreamMaster monitors
- Waterway MUX Flowmeter
- Onspot Automatic Tire Chains
- Lift & Tow Package
- Air conditioning
- Pierce Driver Mux Rear Camera
- HiViz and Whelen scene lighting
- Whelen emergency lighting
- (2) Grover Air Horns In Bumper
- Federal Q2B Siren1) 2.50” crosslay
- (1) 1.75” crosslay
- Hose Bed Capacity 800′ of 5.00″
- (1) 3.00″ Tank to Pump Valve
